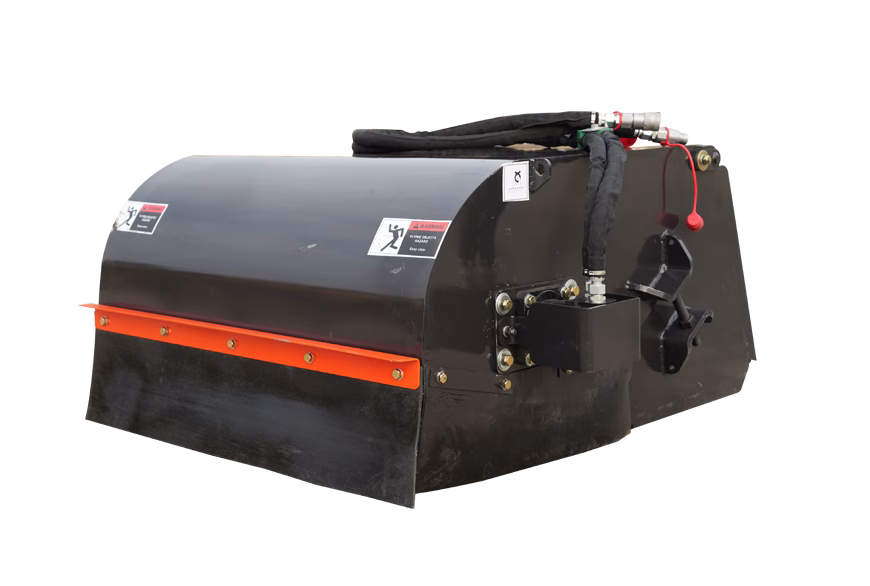

Skid Steer Attachments
Closed Sweeper
Structural Features
- Compact and Lightweight Design: Features a dust-blocking canvas that is both functional and aesthetically pleasing, giving it a refined look.
- Simple Operation and Easy Maintenance: The motor includes a quick-change installation for swift brush replacement, enhancing maintenance efficiency.
- Reliable and Durable: Equipped with diamond-shaped hollow bristles for increased wear resistance. An anti-entanglement device at the motor end prevents wrapping by linear objects, extending the motor’s lifespan. Detachable wear-resistant plates at the bottom of the bucket further enhance durability.
Usage Scenarios
Designed for S35 skid steer loaders and similar equipment, this attachment efficiently sweeps debris, soil, gravel, and other waste materials from road surfaces. It’s perfect for cleaning parking lots, sidewalks, docks, warehouses, and port areas. Collected debris can be conveniently deposited into a collection bucket for disposal at designated locations.
Specification
| Item | Unit | S35EA1-1805000 |
|---|---|---|
| Overall Length (A) | in | 47.4 |
| Overall Width (B) | in | 47.5 |
| Overall Height (C) | in | 22.1 |
| Product Weight | lbs | 451.9 |
| Working Width | in | 35.6 |
| Brush Blade Diameter | in | 22.0 |
| Rotation Speed | rpm | 200-300 |
| Hydraulic Pressure | psi | 1450-2031 |
| Flow Rate | gpm | 7.9-13.2 |

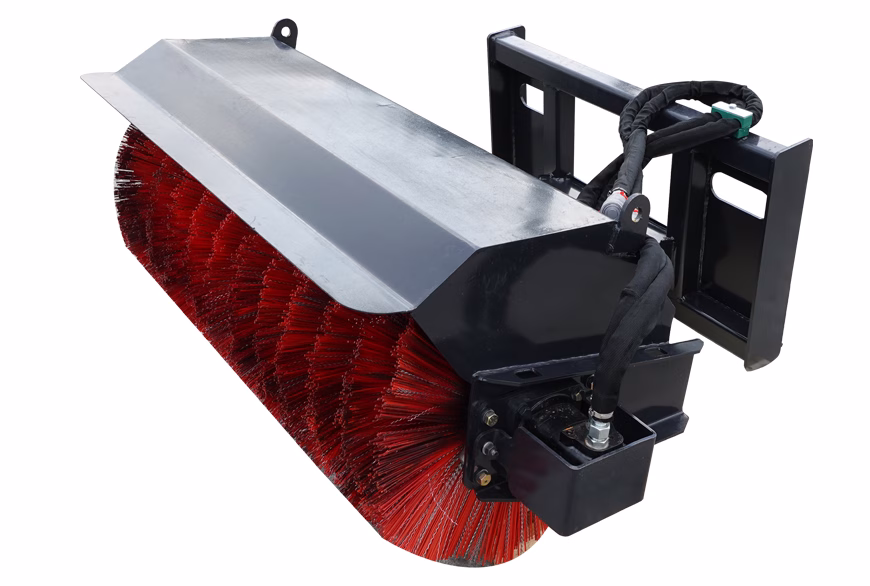

Skid Steer Attachments
Angle Broom
Structural Features
Our design prioritizes a compact and lightweight structure, making it easy to operate and maintain. The motor’s quick-change installation allows for convenient brush replacement, enhancing maintenance efficiency. Diamond-shaped hollow bristles improve wear resistance, while an anti-entanglement device at the motor end prevents linear objects from wrapping around it, extending the motor’s lifespan. Detachable wear-resistant plates on the bucket bottom further increase durability.
Usage Scenarios
When mounted on S35 skid steer loaders and similar equipment, this attachment functions as an efficient road sweeper, perfect for clearing light snow and debris from roads. It excels in confined spaces and avoids damaging the road surface during operation. With a maximum tilt angle of 30° to both the left and right, it can effectively sweep debris to one side. It swiftly clears snow, dirt, and compacted thin ice, including along curbs and in corners, ensuring thorough cleanliness.
Specification
| Item | Unit | S35EA1-1803000 |
|---|---|---|
| Overall Length (A) | in | 43.7 |
| Overall Width (B) | in | 55.1 |
| Overall Height (C) | in | 25.2 |
| Product Weight | lbs | 451.9 |
| Working Width | in | 35.4 |
| Brush Blade Diameter | in | 22.0 |
| Rotation Speed | rpm | 200-300 |
| Hydraulic Pressure | psi | 1450-2031 |
| Flow Rate | gpm | 7.9-13.2 |
