Yuchai YC80 Excavator

Home » Excavators » Yuchai YC80 Excavator

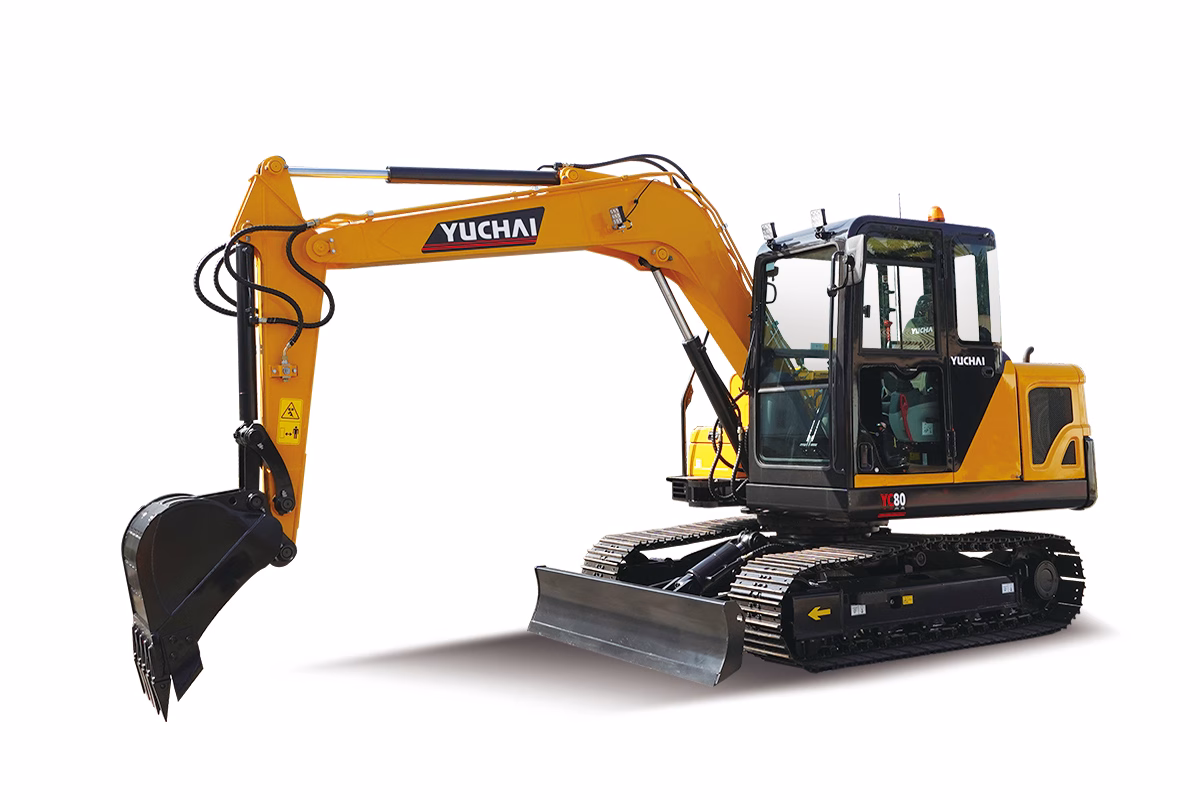

Yuchai Americas YC80 excavator, yellow and black, with extended boom arm and bucket, tracked chassis, and operator cab, on white background.

Excavator

Yuchai YC80 Excavator

1. Structural Reliability

2. Excellent Performance

3. Fuel saving and high efficiency

4. Brand new large cabin

5. Convenient maintenance

6. Comfortable driving experience

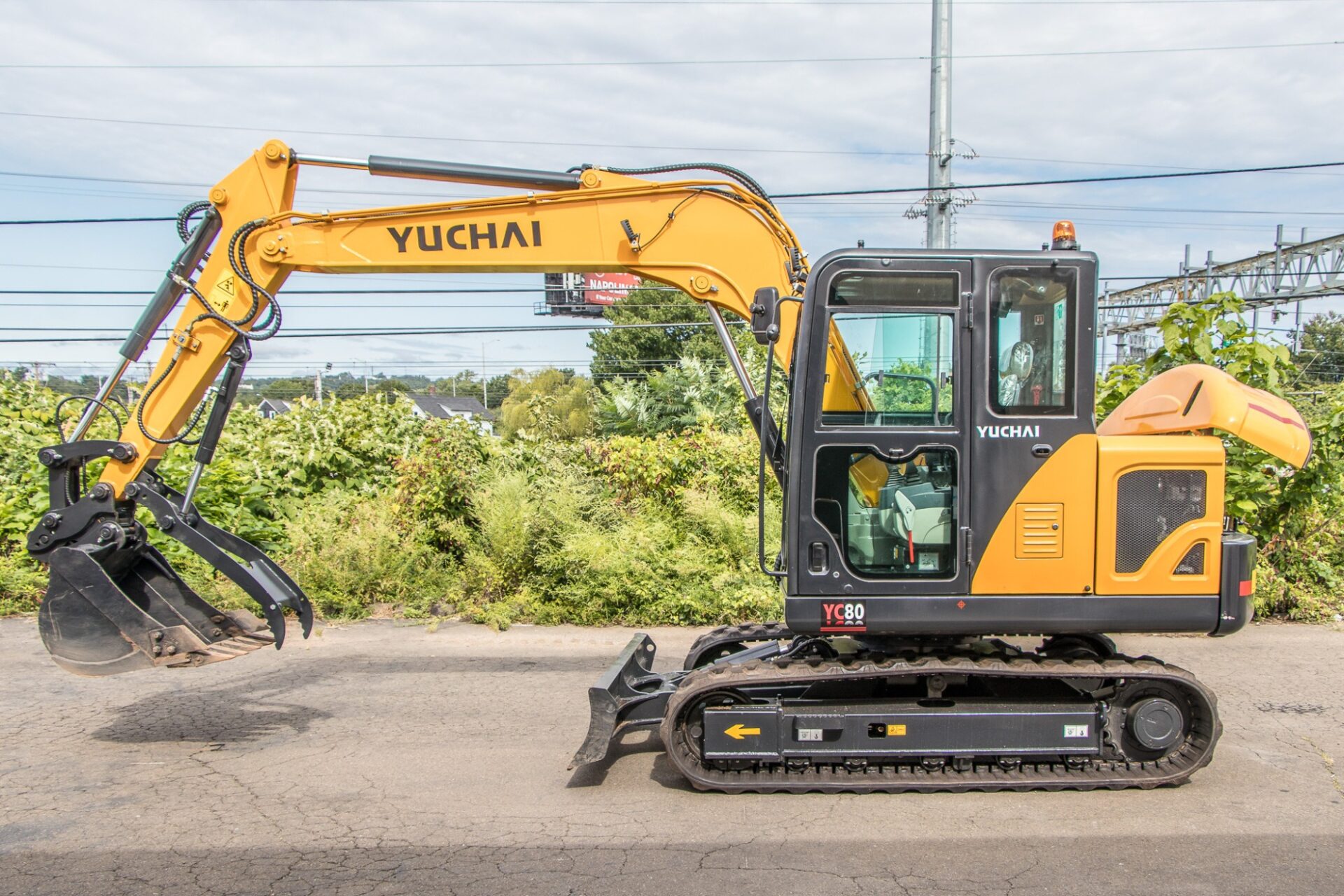

Excavator CT: Yuchai YC80 with 30+ attachments

International Brand Engine

It is equipped with Yanmar 4TNV98C naturally aspirated engine, with an approved power of 59.6 hp/2100 rpm / 56.8 hp/2000 rpm. Fuel-saving, low noise, sufficient power, low emission, and compliance with emission regulations.

Maximum excavation force at the same level

The maximum traction force of YC80 is 68kN, the digging force of bucket is 56KN, and the digging force of stick is 38KN, which ensures the effective exertion of strong digging force and makes the digging and hoisting more stable.

Higher energy efficiency ratio

Better fuel efficiency: In the common speed range, the average efficiency of YC80 is about 19% higher than that of the industry benchmark model

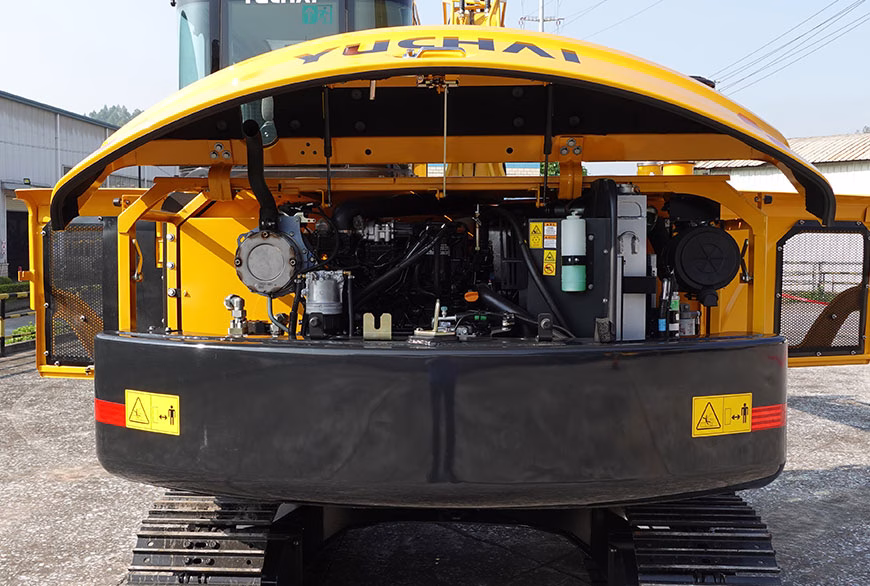

Yuchai Americas excavator engine compartment open, revealing complex machinery, hydraulics, and cooling systems beneath yellow hood with Yuchai branding

Rich apparel

  • More than 30 types of attachments, including a hydraulic hammer, bucket, quick-change device, wooden grab, simple grab pliers, ditch bucket, shell bucket, drilling tool, lawn mower, etc., are applied across more than 40 key working conditions, providing versatility in a wide range of working scenarios.

Yuchai Americas excavator lineup featuring three yellow machines with extended arms, various attachments displayed below, set against a cityscape background with hexagonal overlay

Reasonable Layout

  • While the whole hood is kept, two openable side doors are added, and the three filters are centralized, so that all maintenance and inspection points are within reach.

    All the main hydraulic hoses are arranged in the direction of the working device, which improves the convenience of detection and maintenance.

Yuchai Excavators: American-Grade Quality, Globally Recognized

Since 1989, Yuchai Heavy Industry has been pioneering the excavator market. As first company to produce and export excavators worldwide, we’ve grown to become the country’s largest manufacturer and exporter of compact excavators.

Why Choose Yuchai?

  • 30+ years of engineering excellence

  • Cutting-edge technology backed by national high-tech enterprise status

  • Rigorous quality control meeting international standards

  • Competitive pricing without compromising on performance

  • Robust after-sales support and parts availability

Experience the Yuchai Difference Join countless satisfied customers across the globe who trust Yuchai for their excavation needs. Our commitment to innovation and quality ensures you get a reliable, efficient, and cost-effective solution for your projects.

Yuchai Excavators: Built on Tradition, Engineered for the Future

Logo of Yuchai Americas featuring a red stylized Y symbol, YUCHAI in large dark gray letters, YUCHAI HEAVY INDUSTRY in er text below, and AMERICAS in the top right corner.

Lower Fuel Consumption

Optimize the power of diesel engine and hydraulic system. Compared with YC60-8, YC60-9 can save fuel consumption up to 30%, and the fuel economy has apparent advantages over peers.

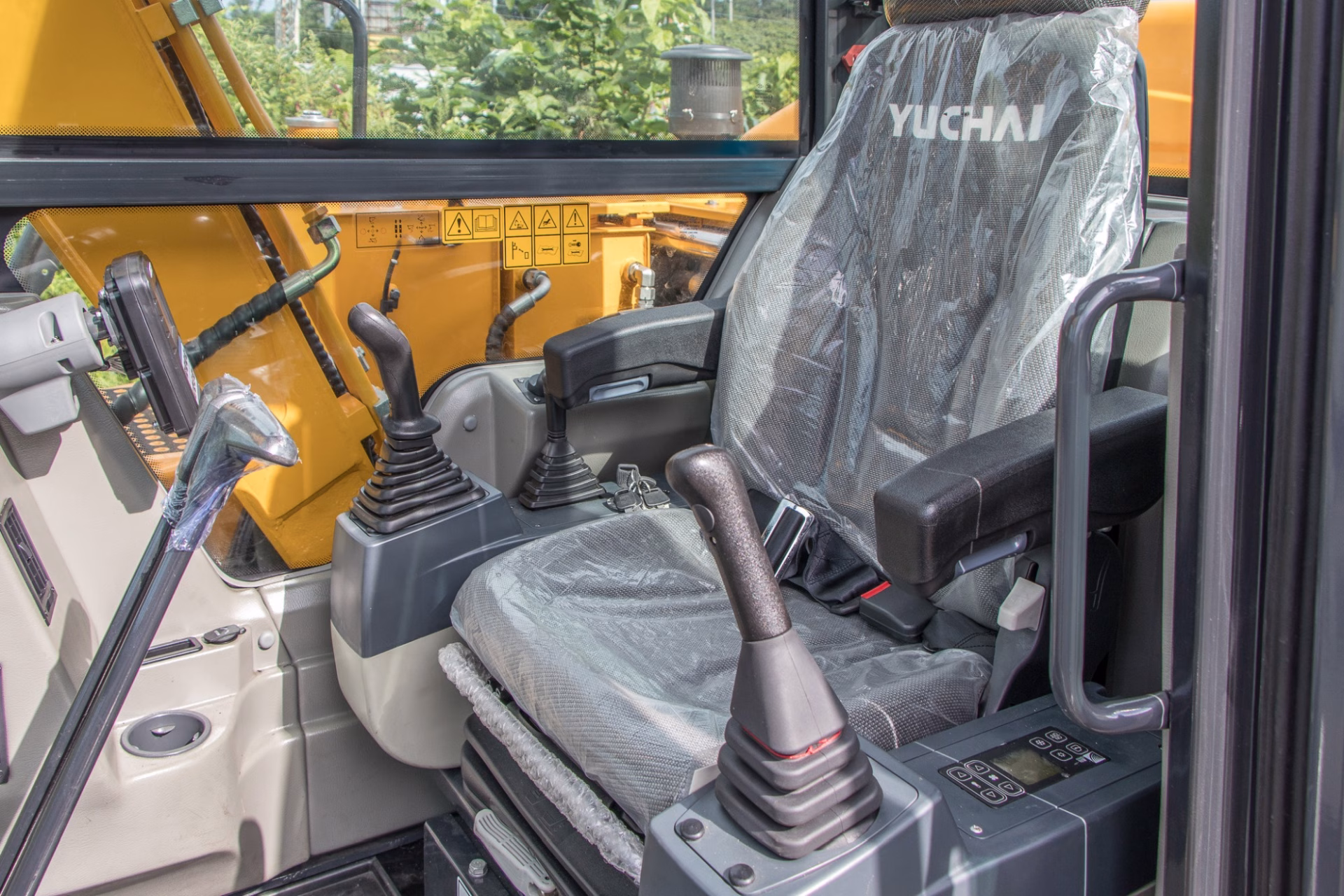

Two-way sliding seat

The interior is designed by professional ergonomics, the handles and switches are arranged reasonably, and the operation is natural and comfortable, which can effectively reduce fatigue.

Famous seats in the industry, with suspension damping, can adjust damping according to body weight, and can be laid down over 135.

The position of the seat and the control box can be adjusted independently, which can adapt to different figures or sitting positions.

Crawler excavator Yuchai YC80 with 68kN traction force

Specification

Excavator Model – YC80
Imperial Units Metric Units
Basic parameter
Machine weight 17,200 lbs 7800 kg
Bucket capacity 0.34 yd³ 0.26 m³
Width of bucket 33.27 in 845 mm
Performance parameter
Engine model Yanmar 4TNV99 / 4TNV98C (EuroV) Yanmar 4TNV99 / 4TNV98C (EuroV)
Engine power 59.6 hp/2100 rpm / 56.8 hp/2000 rpm 44.4 kW/2100 rpm / 42.4 kW/2000 rpm
Max. Gradeability 35° 35°
Max. digging force of arm 8,543 lbf 38 kN
Max. digging force of bucket 12,597 lbf 56 kN
Traveling speed 2.4/1.6 mph 3.9/2.6 km/h
Max. hauling force 15,297 lbf 68 kN
Slewing speed of platform 9~13 rpm 9~13 rpm
Operating parameter
Max. digging height 280.0 in 7112 mm
Max. digging depth 158.3 in 4022 mm
Max. digging radius 251.6 in 6390 mm
Max. digging radius on ground level 246.0 in 6248 mm
Max. dumping height 199.0 in 5055 mm
Min. slewing radius 74.0 in 1881 mm
Max. vertical digging depth 138.4 in 3515 mm
Max. dozer blade height
Max. dozer blade depth
Transportation dimension
Overall length 244.8 in 6215 mm
Overall width 89.0 in 2260 mm
Overall height 106.5 in 2705 mm
Other Parameter
Width of undercarriage 84.6 in 2150 mm
Length of track 109.6 in 2783 mm
Width of track 17.7 in 450 mm
Height between undercarriage and ground 15.0 in 380 mm
Height between platform and ground 31.1 in 790 mm
Platform tail turning radius 74.0 in 1881 mm
Length to center of rollers 86.6 in 2200 mm
Fuel tank capacity 39.9 gal 151 L
Hydraulic oil tank capacity 33.0 gal 125 L
Track gauge 86.6 in 2200 mm
Working Pressure 3,988 psi 27.5 MPa
Ground Contact Pressure
Arm length 65.0 in 1650 mm
Boom length 146.1 in 3710 mm
Steering head angle
Flow rate 44.4+4.6 gal/min 168+17.6 L/min
