Skid Steer

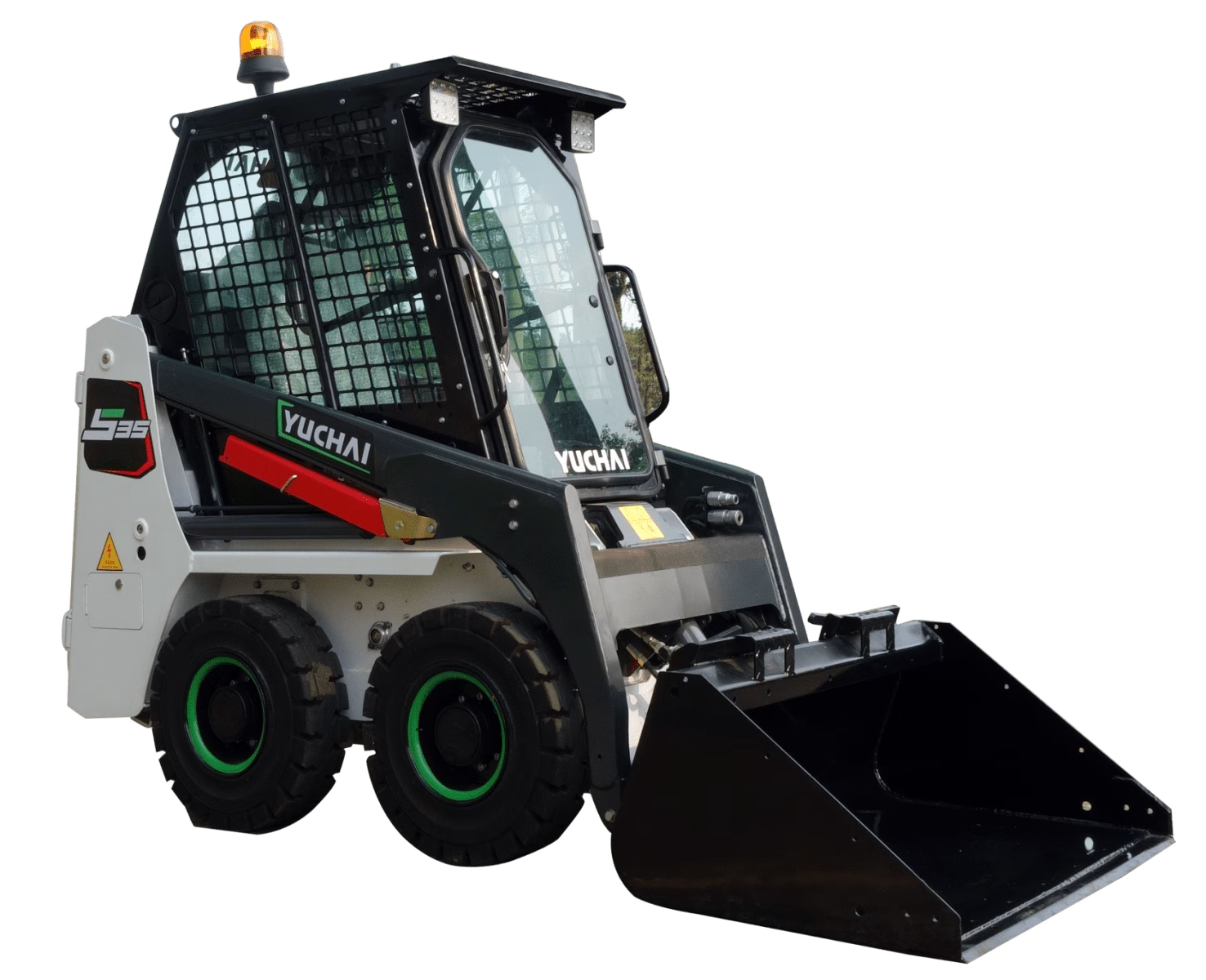

S35-Electric Skid Steer Loader
The Yuchai S35 Electric Skid Steer Loader is compact and versatile, designed to navigate extremely tight spaces with ease. It moves effortlessly through corridors, aisles, alleys, and low-clearance areas, making it perfect for tasks such as shoveling, sweeping, crushing, and more.
This cutting-edge electric skid-steer loader is poised to revolutionize the skid steer market. With a width of just 37 inches, a length of 6.6 feet, and a weight of 3,108 pounds, the S35 excels in indoor maneuverability and transfer performance. It can reach speeds of up to 9 mph, rotate sharply in confined spaces, and easily switch between various attachments. Its advanced hydraulic quick-coupling system allows for seamless attachment changes, boosting overall operational efficiency.
Superior power and performance
The S35 Electric Skid Steer Loader is engineered to handle demanding indoor tasks, offering a powerful alternative to labor-intensive and costly manual work. Operating almost silently, it’s perfect for environments where noise is a concern, allowing for 24-hour use.
Unlike traditional diesel or hydraulic machines, the S35 enables simultaneous driving and tilting without electrical lag, delivering superior power and performance. Operators benefit from increased efficiency, even when using multiple functions at once.
The S35 is equipped with a high-quality battery, ensuring stable performance and reliability with various charging options.
Smoother movement and steering
Featuring Hub motor technology, the S35 eliminates the need for traditional transmission bridges and gearboxes, resulting in smoother movement and steering. Its standard energy recovery system effectively extends operating hours, while the independently regulated hydraulic flow minimizes energy consumption for more efficient operation.
The loader’s suspended seat ensures optimal comfort in various working conditions, and the user-friendly instrument panel and controls are designed for ease of use.
This electric skid steer loader cuts operator energy costs by 90% and maintenance costs by 95%, significantly reducing downtime with its simple technical design.
The Yuchai S35 Electric Skid Steer Loader is emission-free, quiet, and a reliable partner for your job site.
With the S35 Electric Skid Steer Loader, you can drive and tilt simultaneously without the electrical lag typical in diesel/hydraulic machines. Operators experience increased power compared to traditional loaders while maintaining performance when using multiple functions concurrently.
Various charging options available
The battery of the S35 Electric Skid Steer Loader comes from one top manufacturers, offering stable performance and exceptional quality, with various charging options available.
A suspended seat provides optimal comfort in various working conditions, while the instrument panel and controls are designed for simplicity and accessibility.
The Yuchai S35 Electric Skid Steer Loader is not only emission-free and noiseless but also stands as your most dependable partner on the job.
Compact and Flexible
Excellent indoor passing ability and transfer performance.
Improved Power
Operators will experience a significant increase in power compared to traditional loaders without compromising performance when operating multiple functions simultaneously.
Zero-Emission
The Yuchai S35 Electric Skid Steer Loader is not only a zero-emission and noiseless electric Equipment, but it also stands as your most reliable partner at work..
Yuchai Excavators: American-Grade Quality, Globally Recognized
Since 1989, Yuchai Heavy Industry has been pioneering the excavator market. As first company to produce and export excavators worldwide, we’ve grown to become the country’s largest manufacturer and exporter of compact excavators.
Why Choose Yuchai?
-
30+ years of engineering excellence
-
Cutting-edge technology backed by national high-tech enterprise status
-
Rigorous quality control meeting international standards
-
Competitive pricing without compromising on performance
-
Robust after-sales support and parts availability
Experience the Yuchai Difference Join countless satisfied customers across the globe who trust Yuchai for their excavation needs. Our commitment to innovation and quality ensures you get a reliable, efficient, and cost-effective solution for your projects.
Yuchai Excavators: Built on Tradition, Engineered for the Future
Specification
| Technical Data | Imperial Units | Metric Units |
|---|---|---|
| Rated load (ISO14397-1) | 772 lbs | 350 kg |
| Tipping Load (ISO14397-1) | 1,499 lbs | 680 kg |
| Boom rising force | 1,822 lbf | 8100 N |
| Bucket rising force | 2,023 lbf | 9000 N |
| Max. travel speed (low gear) | 6.5 mph | 10.5 km/h |
| Machine weight | 3,109 lbs | 1410 kg |
| Battery Power | 28.6 hp | 21.3 kWh |
| Endurance | 6-8 h | 6-8 h |
| Steering | The direction and speed are controlled by the left and right potentiometer handles | The direction and speed are controlled by the left and right potentiometer handles |
| Lifting and dumping | Separately controlled by left and right foot pedals | Separately controlled by left and right foot pedals |
| Front Hydraulic Auxiliary (Standard) | Controlled by right control lever | Controlled by right control lever |
| Dimensions | ||
| A Overall operating height | 124.0 in | 3150 mm |
| B Height to top of cab | 71.4 in | 1814 mm |
| C Departure angle | 25° | 25° |
| D Ground clearance | 5.6 in | 141 mm |
| E Wheelbase | 28.4 in | 722 mm |
| F Overall length without standard bucket | 83.5 in | 2120 mm |
| G Overall length with standard bucket | 102.4 in | 2600 mm |
| H Maximum angle of flat ground | 22° | 22° |
| I Unloading height | 76.1 in | 1934 mm |
| J Height to bucket hinge pin | 94.5 in | 2399 mm |
| K Loading distance at Max. unloading height | 15.7 in | 400 mm |
| L Dumping angle at maximum height | 34° | 34° |
| M Rollback of bucket at full height | 97° | 97° |
| N Bucket width | 43.9 in | 1115 mm |
| O Radius of gyration | 61.3 in | 1557 mm |
| P Tread | 29.6 in | 752 mm |
| Q Machine width | 37.4 in | 950 mm |
| Attachments | 48″ angle-broom | 48″ angle-broom |
