Excavator

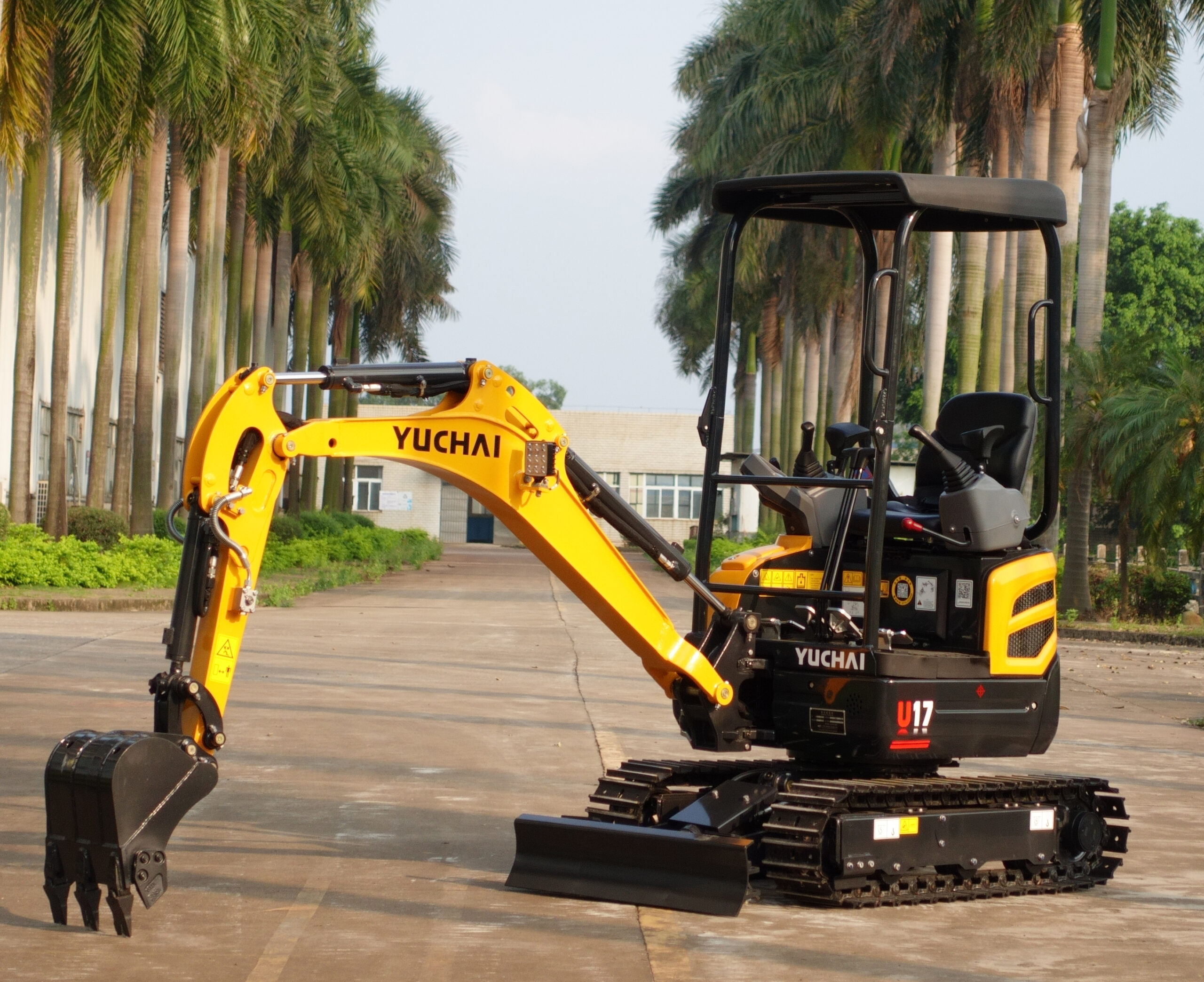

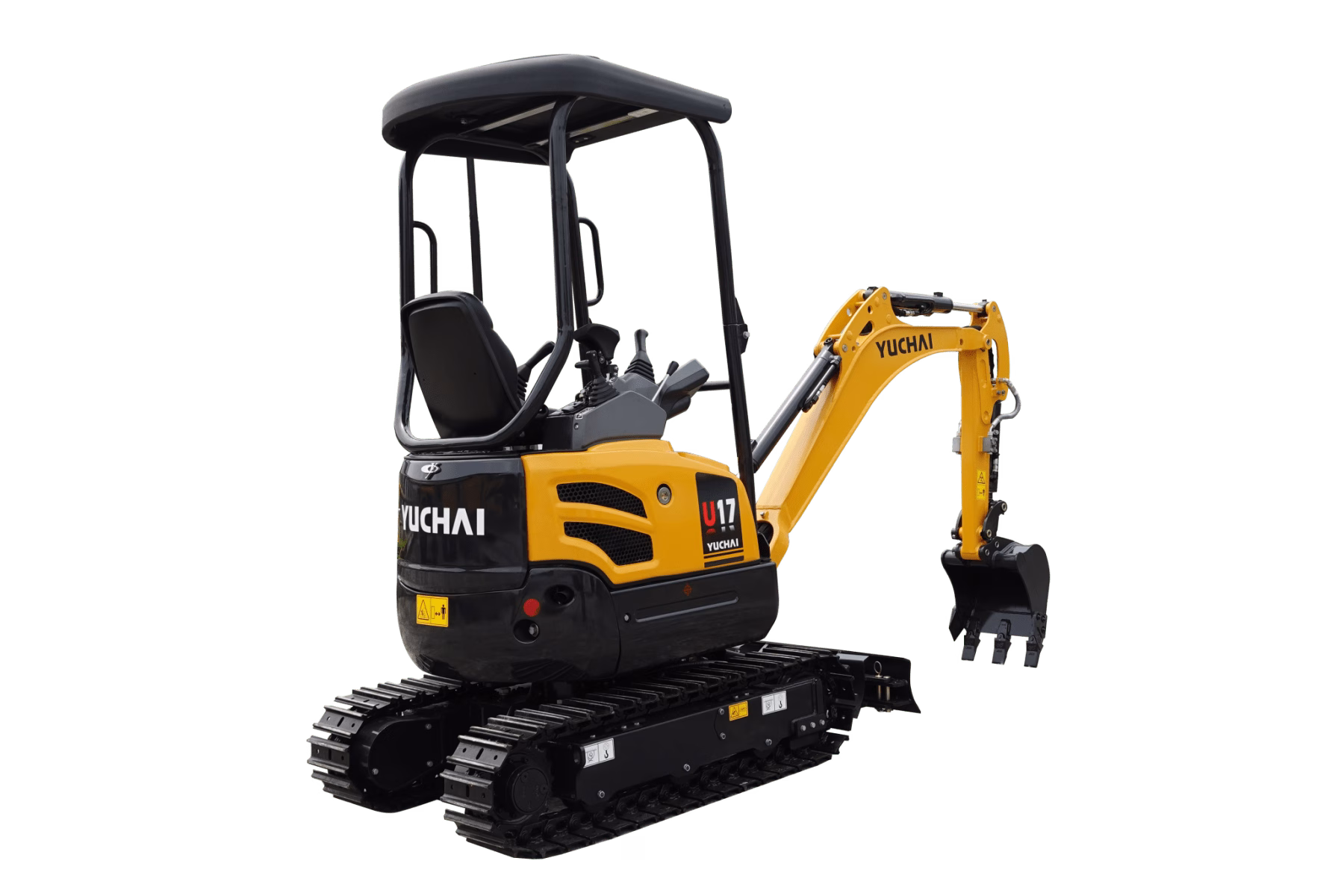

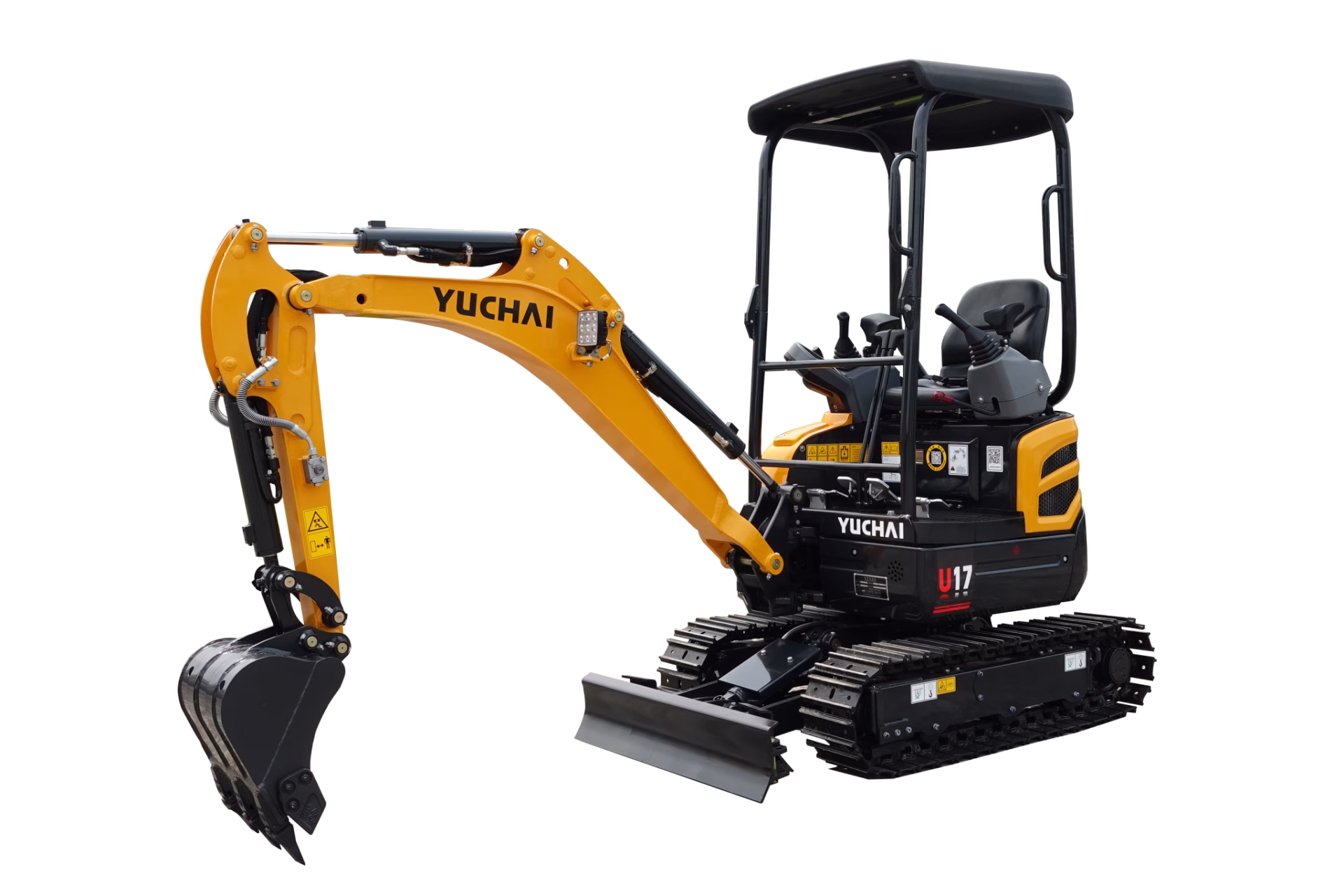

Yuchai U17 Excavator
1.Powerful Kubota Engine
2.Exceptional Uphill Performance
3.High Efficiency and Low Fuel Consumption
4.Telescopic Chassis, Solid and Reliable
5.Swiftly Detachable Canopy
6.Easy Maintenance
7.Equipped with Standard Rubber Tracks
Adaptability
Upper arm, deflection, tailless, interchangeable track, more than 40 kinds of attachments, two columns canopy & four columns canopy & cabin interchangeable
Improved Stability
Internal pipes, cast steel end, telescopic chassis
Improved Comfort
High back seat, improved control system

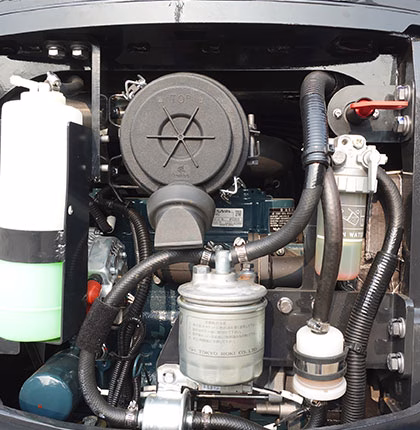

YANMAR engine
- Power/Speed 11.8/2300 (kW/ RPM)
Load sensitive system
- The movement is light, swift, powerful, coordinated and efficient.
- The load sensitive control system has lower power consumption and higher efficiency than conventional hydraulic system.
- High efficiency and low power consumption save fuel and reduce heat of hydraulic system.

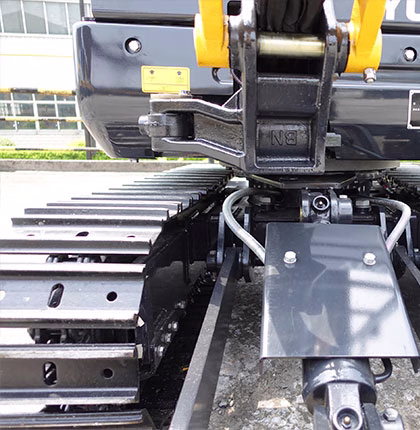

Telescopic chassis
- The chassis can narrow to 39 inches at the narrowest, extend to 49 inches, and can pass through narrow passages.
Interchangeable track
- Rubber tracks are standard version. Rubber tracks and steel tracks can be Interchanged without support wheel.
Yuchai Excavators: American-Grade Quality, Globally Recognized
Since 1989, Yuchai Heavy Industry has been pioneering the excavator market. As first company to produce and export excavators worldwide, we’ve grown to become the country’s largest manufacturer and exporter of compact excavators.
Why Choose Yuchai?
-
30+ years of engineering excellence
-
Cutting-edge technology backed by national high-tech enterprise status
-
Rigorous quality control meeting international standards
-
Competitive pricing without compromising on performance
-
Robust after-sales support and parts availability
Experience the Yuchai Difference Join countless satisfied customers across the globe who trust Yuchai for their excavation needs. Our commitment to innovation and quality ensures you get a reliable, efficient, and cost-effective solution for your projects.
Yuchai Excavators: Built on Tradition, Engineered for the Future
Full Pilot Control
More comfortable driving experience and smoother movement.
The Boom Can Be Deflected Left and Right
Maximum left deflection angle of boom is 60°. Maximum right deflection angle of boom is 55°. It improves the flexibility of the excavator bucket, reduces the working space, so that the bucket can rotate when the machine body and boom remain stationary.
Interchangeable
Two columns canopy → four columns cabin. The cab is interchangeable.

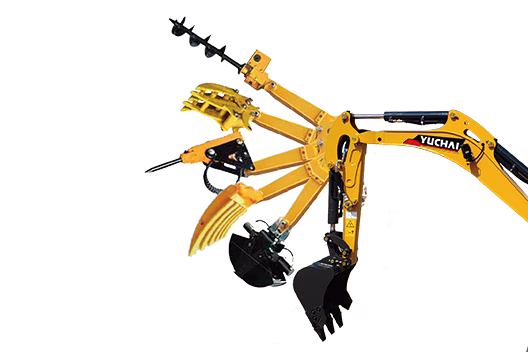

Versatile Attachments for Any Job
Transform your excavator into a multi-purpose powerhouse with our extensive range of attachments:
Hydraulic hammers for demolition
Specialized buckets for various materials
Quick-change systems for rapid tool switching
Wood grapples for forestry applications
Precision grab pliers for delicate handling
Clearing buckets for landscaping
Clamshell buckets for bulk material handling
Drilling tools for foundation work
Lawn mowers for vegetation management
With over 40 key configurations available, your Yuchai excavator adapts to diverse job sites and tasks. From construction to landscaping, demolition to agriculture – one machine, endless possibilities.
Boost your productivity and expand your service offerings with Yuchai’s comprehensive attachment lineup.
Specification
| Excavator Model – U17 | Imperial Units | Metric Units |
|---|---|---|
| Basic parameter | ||
| Machine weight | 3,792 lbs | 1720 kg |
| Bucket capacity | 0.065 yd³ | 0.05 m³ |
| Width of bucket | 18.5 in | 470 mm |
| Performance parameter | ||
| Engine model | Kubota D902-E4B | Kubota D902-E4B |
| Engine power | 15.8 hp/2300 rpm | 11.8 kW/2300 rpm |
| Max. Gradeability | 30° | 30° |
| Max. digging force of arm | 2,136 lbf | 9.5 kN |
| Max. digging force of bucket | 3,866 lbf | 17.2 kN |
| Traveling speed | 1.2/2.5 mph | 2.0/4.0 km/h |
| Max. hauling force | 5,620 lbf | 25 kN |
| Slewing speed of platform | 8.5~10.5 rpm | 8.5~10.5 rpm |
| Operating parameter | ||
| Max. digging height | 141.7 in | 3600 mm |
| Max. digging depth | 90.9 in | 2310 mm |
| Max. digging radius | 154.7 in | 3930 mm |
| Max. digging radius on ground level | 152.4 in | 3870 mm |
| Max. dumping height | 97.8 in | 2485 mm |
| Min. slewing radius | 59.1 in | 1500 mm |
| Max. vertical digging depth | 75.6 in | 1920 mm |
| Max. dozer blade height | ||
| Max. dozer blade depth | ||
| Transportation dimension | ||
| Overall length | 154.7 in | 3930 mm |
| Overall width | 39.0 in | 990 mm |
| Overall height | 92.1 in | 2340 mm |
| Other Parameter | ||
| Width of undercarriage | 39.0/48.8 in | 990/1240 mm |
| Length of track | 63.0 in | 1600 mm |
| Width of track | 9.1 in | 230 mm |
| Height between undercarriage and ground | 5.9 in | 150 mm |
| Height between platform and ground | 17.7 in | 450 mm |
| Platform tail turning radius | 24.4 in | 620 mm |
| Length to center of rollers | 48.4 in | 1230 mm |
| Fuel tank capacity | 4.2 gal | 16 L |
| Hydraulic oil tank capacity | 4.2 gal | 16 L |
| Track gauge | 29.9/39.8 in | 760/1010 mm |
| Working Pressure | 3,481 psi | 24 MPa |
| Ground Contact Pressure | 137.8 psi | 950 kPa |
| Arm length | 72.0 in | 1828 mm |
| Boom length | ||
| Steering head angle | 60° (L) / 55° (R) | 60° (L) / 55° (R) |
| Flow rate | 17.0 gal/min | 64.4 L/min |
