Yuchai YC60 Excavator

Home » Excavators » Yuchai YC60 Excavator

Yuchai YC60 excavator as viewed from left side.

Excavator

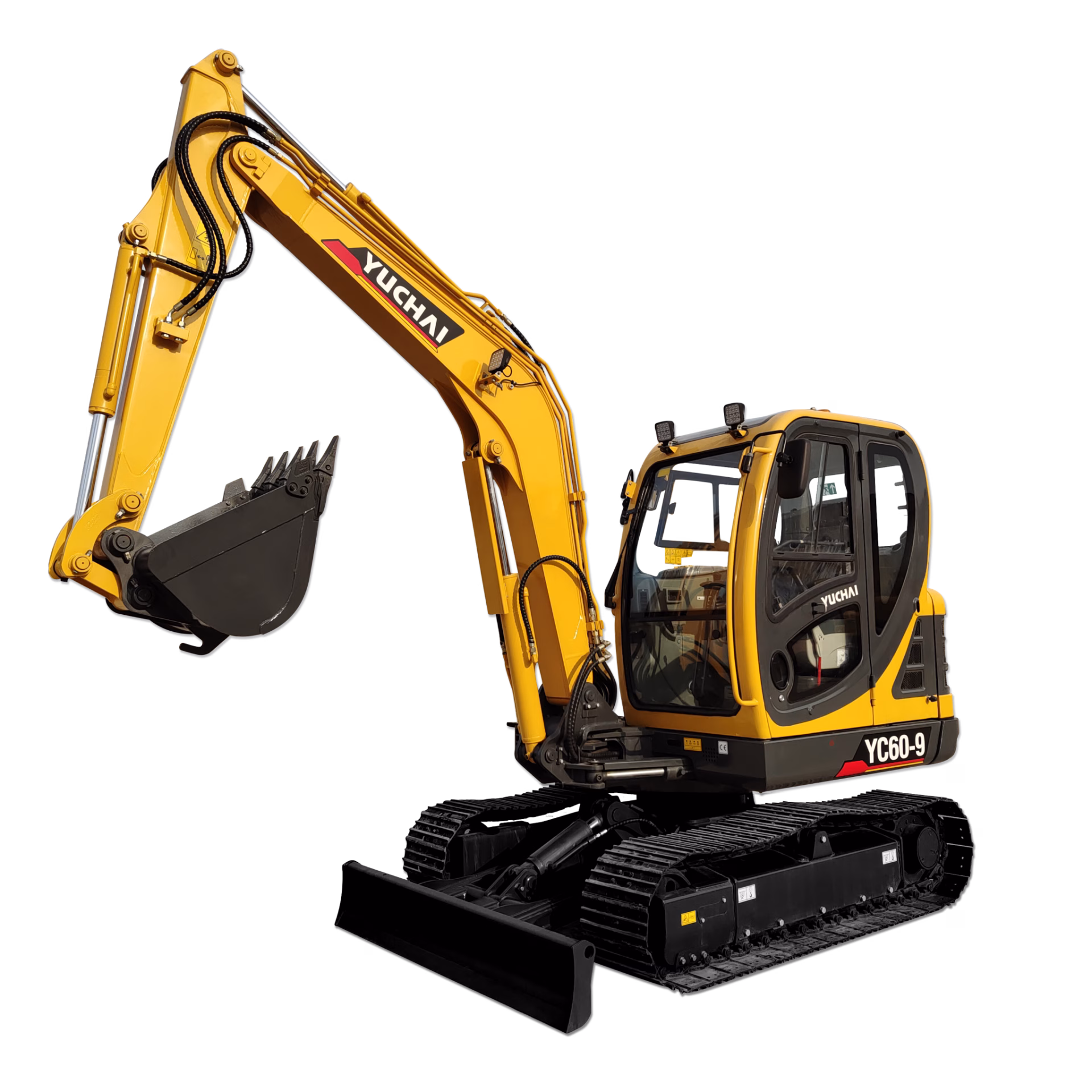

Yuchai YC60 Excavator

Structural Reliability
Outstanding Performance
Fuel Efficiency
Spacious New Large Cabin
Convenient Maintenance
Ability to Level Soil Reaches Over 5 Feet

International Brand Engine

Equipped with imported Kubota V2403(41.2 hp/2200 rpm / 46.9 hp/2200 rpm); Low fuel consumption, low noise, full power and low emission to meet emission regulations.

Upgrade Hydraulic System

The YC60 adopts a three-pump system imported from Japan, featuring an arm regenerative circuit for stable and coordinated operation. It is highly reliable.

Sufficient Traction

The YC60 is equipped with an imported walking motor that delivers robust traction force, making it capable of handling various complex working conditions. It can climb gradients up to 35 degrees and operates with a system pressure of 24 MPa (approximately 3,480 psi). The bucket digging strength is rated at 7,200 pounds, ensuring powerful excavation capabilities in demanding environments.

The Largest Cab of the Same Tonnage in the Industry

The new shock-absorbing aviation seat allows for step-less adjustment between approximately 110 to 286 pounds.
The handrail, integrated with the console, features a two-stage sliding structure, allowing for adjustable seating positions forward and backward.
The chair’s opening angle is greater than 135 degrees, enhancing comfort and flexibility.

Reasonable Layout

Three arranged centralized filters. Front multi-way valve, large fuel tank.
The large fuel tank can satisfy the machine’s working for more than 16 hours, reduce refueling burden.

Yuchai Excavators: American-Grade Quality, Globally Recognized

Since 1989, Yuchai Heavy Industry has been pioneering the excavator market. As first company to produce and export excavators worldwide, we’ve grown to become the country’s largest manufacturer and exporter of compact excavators.

Why Choose Yuchai?

30+ years of engineering excellence
Cutting-edge technology backed by national high-tech enterprise status
Rigorous quality control meeting international standards
Competitive pricing without compromising on performance
Robust after-sales support and parts availability

Experience the Yuchai Difference Join countless satisfied customers across the globe who trust Yuchai for their excavation needs. Our commitment to innovation and quality ensures you get a reliable, efficient, and cost-effective solution for your projects.

Yuchai Excavators: Built on Tradition, Engineered for the Future

Lower Fuel Consumption

Optimize the power of diesel engine and hydraulic system. Compared with YC60-8, YC60-9 can save fuel consumption up to 30%, and the fuel economy has apparent advantages over peers.

Improve Performance and Level Soil Efficiently

The YC60-9 enhances movement coordination and efficiently levels land over 59 inches (1500 mm). It is user-friendly for beginners, reducing labor intensity. Compared to competing products under similar conditions, which typically level less than 31 inches (800 mm), it offers significant advantages over its peers.

Versatile Attachments for Any Job

Transform your excavator into a multi-purpose powerhouse with our extensive range of attachments:

Hydraulic hammers for demolition
Specialized buckets for various materials
Quick-change systems for rapid tool switching
Wood grapples for forestry applications
Precision grab pliers for delicate handling
Clearing buckets for landscaping
Clamshell buckets for bulk material handling
Drilling tools for foundation work
Lawn mowers for vegetation management

With over 40 key configurations available, your Yuchai excavator adapts to diverse job sites and tasks. From construction to landscaping, demolition to agriculture – one machine, endless possibilities.

Boost your productivity and expand your service offerings with Yuchai’s comprehensive attachment lineup.

Specification

Excavator Model – YC60	Imperial Units	Metric Units
Basic parameter
Machine weight	13,228 lbs	6000 kg
Bucket capacity	0.30 yd³	0.23 m³
Width of bucket	30.5 in	775 mm
Performance parameter
Engine model	Kubota V2607	Kubota V2607
Engine power	41.2 hp/2200 rpm / 46.9 hp/2200 rpm	30.7 kW/2200 rpm / 35 kW/2200 rpm
Max. Gradeability	35°	35°
Max. digging force of arm	6,182 lbf	27.5 kN
Max. digging force of bucket	8,232 lbf	36.6 kN
Traveling speed	2.2/1.4 mph	3.6/2.2 km/h
Max. hauling force	10,453 lbf	46.5 kN
Slewing speed of platform	11~13.5 rpm	11~13.5 rpm
Operating parameter
Max. digging height	232.3 in	5900 mm
Max. digging depth	154.9 in	3935 mm
Max. digging radius	256.9 in	6520 mm
Max. digging radius on ground level	251.4 in	6385 mm
Max. dumping height	158.7 in	4030 mm
Min. slewing radius	105.7 in	2685 mm
Max. vertical digging depth	132.7 in	3370 mm
Max. dozer blade height
Max. dozer blade depth
Transportation dimension
Overall length	239.5 in	6085 mm
Overall width	77.2 in	1962 mm
Overall height	103.7 in	2635 mm
Other Parameter
Width of undercarriage	75.6 in	1920 mm
Length of track	102.4 in	2600 mm
Width of track	15.7 in	400 mm
Height between undercarriage and ground	13.2 in	335 mm
Height between platform and ground	28.3 in	720 mm
Platform tail turning radius	65.7 in	1670 mm
Length to center of rollers	81.1 in	2060 mm
Fuel tank capacity	32.2 gal	122 L
Hydraulic oil tank capacity	20.3 gal	77 L
Track gauge	59.8 in	1520 mm
Working Pressure	3,625 psi	25 MPa
Ground Contact Pressure
Arm length	66.9 in	1699.2 mm
Boom length	122.8 in	3118 mm
Steering head angle	—	—
Flow rate	36.6 gal/min	138.6 L/min
